Manufacturer : WEINVIEW
-

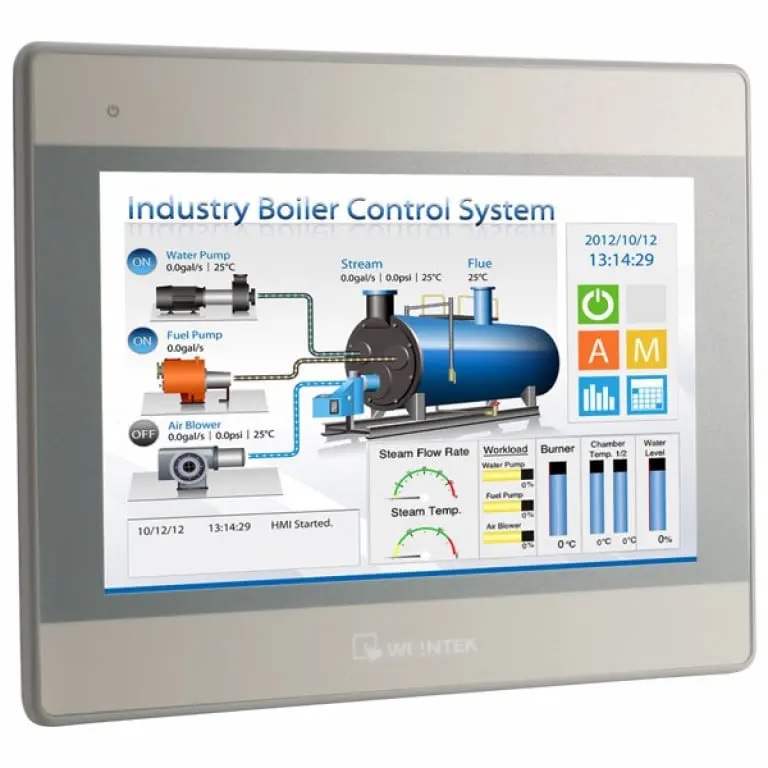

MT8071iE
-
Three independent serial ports support simultaneous communication with controllers of three different protocols, one screen and multiple machines
-
Fast running with Cortex A8 600MHz CPU and 128MB RAM
-
High-color display of up to 16 million colors in the industry, perfect presentation
-
New gray and white two-color appearance and thin lightweight body, I can't put it down
-
Project files, installation holes, communication connections are compatible with old organic models, upgrade worry-free
-
Built-in power isolation, effectively suppressing power surges and abnormal ground currents, enhancing HMI field operation stability
-
EasyBuilder Pro configuration software with new functions such as flow block, installment payment, operation record, recipe database, etc.
-
Display: 7" TFT
-
Resolution: 800 x 480
-
Brightness: 400
-
Contrast: 500:1
-
Backlight Type: LED
-
Backlight life: >30,000 hours
-
Display color: 16.7M
-
LCD viewing angle (D / B / L / R): 60 / 80 / 80 / 80
-
Touch Panel: Type: Four-wire Resistive
-
Touch panel: Touch accuracy: Action zone length (X) ± 2%, width (Y) ± 2%
-
Flash (Flash): 128 MB
-
Memory (RAM): 128 MB
-
Processor: 32 Bits RISC Cortex A8 600MHz
-
I/O interface-5D card slot: none
-
USB Host : USB 2.0 x 1
-
USB Client : None
-
Ethernet interface: 10/100 Base-Tx 1
-
Serial interface: Comi: RS-232, COM2: RS-485 2W/4w,Com3: RS-485 2W
-
RS-485 double isolation protection: none
-
I/O interface- CAN Bus : none
-
Sound output: None
-
Image input: None
-
Perpetual calendar: built-in
-
Power: Input power: 24 ± 20% VDC
-
Power: Power consumption: 450mA@24VDC
-
7" TFT Resolution: 800 x 480 Brightness: 400 Contrast: 500:1 Display
-
Power: Power isolation: Built-in
-
Power supply: Withstand voltage: 500VAC (1 minute)
-
Power supply: Insulation resistance: over 50M0@500VDC
-
Power: Vibration resistance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
-
PCB coating Specifications : Yes
-
Shell material: Engineering plastics
-
Dimensions Wx Day xD : 200.3 x146.3 x 34mm
-
Opening size: 192 x 138 mm
-
Weight: approx. 0.6 kg
-
Installation method: Panel mounting
-
Operating environment: Degree of protection: UL Type 4X (indoor use only) / NEMA4 / IP65
-
Compliant Front Panel
-
Operating environment: Storage ambient temperature: -200~600C (-40~1400F)
-
Operating environment: Operating ambient temperature: 00~50oC (32"~122"F)
-
Operating environment: Ambient humidity: 10% to 90% (no condensation)
-
Certification: CE : Compliance with C [Certification Standard
-
Certification: ATEX : ATEX Zone 2/22 Category 3 G/D
-
Use the software: EasyBuilder Pro V4.10.04 or newer
-
Shipping Weight : 2 Kg
